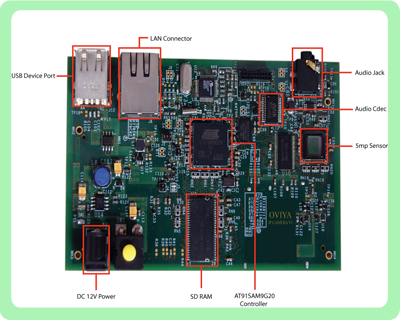

AT91SAM9G20, ARM926EJ-S™ ARM® Thumb® Processor, 400MHz 32-KByte Data Cache, 32-KByte Instruction Cache, Write Buffer
64MB SDRAM Volatile memory, 32MB NAND Flash memory
MT9001 Micron Camera Sensor, 640x480, 720P image format support, Dual camera connected. Maximum pixel size 5MB.
Bayer pattern format, RGB format, JPEG compress format
Linux 2.6.30 kernel, UBoot, Ramdisk files system.
Airtel/Vodafone/BSNL gprs support, Image Transfe via FTP protocol.
2xFull size USB 2.0, USB OTG
1x SD Card
Ethernet through RJ45 connector
Serial RS-232, 1xUser LED.
DC 12V

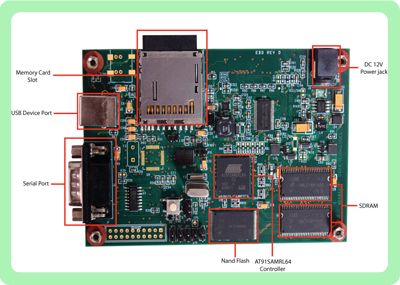

AT91SAM9R64/RL64, ARM926EJ-S™ ARM® Thumb® Processor, 400MHz, 32KB ROM, 64KB FAST SRAM.
32MB SDRAM Volatile memory, 512MB NAND Flash memory.
10.2 inch display panel with WVGA(852x480) pixel support, ITU-R BT.601/ITU-R BT.656.
Stereo Audio Input and Output Jacks
Linux 2.6.24 kernel, UBoot, Ramdisk files system, QT application.
2xFull size USB 2.0, USB OTG
1x SD Card
Ethernet through RJ45 connector
1xUser LED, 4xKEY INPUT.
Serial RS-232.
DC 12V
IMX53 Devkit is is a fully-featured evaluation platform for the Free scale IMX53-based microcontroller. IMX53 comprised Video processing unit, 3D graphics unit, Image processing unit The evaluation kit allows users to extensively evaluate, prototype and create application specific designs.
IMX53 Freescale, ARM926EJ-S™ ARMRCortex™-A8 core,1.2HHz, DDR2-800, LVDDR2-800 and DDR3-800 DRAM.
SATA-2 Interface, 1.5Gpbs
128MB DDR-2 Volatile memory, 512MB NAND Flash memory.
LVDS serial ports, TV-out/VGA port, LCD display interface.
2x Camera port Interface.
Stereo Audio Input and Output Jacks, I2C, AC97 audio interface support.
Linux 2.6.38 kernel, UBoot, Ramdisk files system, Android OS support.
2xFull size USB 2.0, USB OTG.
1x MMX/SD Card Interface support
Ethernet through RJ45 connector
1xUser LED, 4xKEY INPUT, 2x I2C Interface, Ethernet controller Interface.
Serial RS-232.
DC 12V
The LPC1751 Motor Control Board is a full-featured evaluation board based on the NXP processor LPC1751 which runs at up to 12mm, 512 flash Memories In this Processor to control the two DC series motor. In both forward and reverse direction and speed is controlled by using PWM Up to 80% speed is available in this DC motors.
In stepper motor also rotate in clockwise and anticlockwise both the direction. Stepper motor speed controlled by step by step by this LPC 1751 processor.
Seven Segment LED equipped product available for display the custom message. LPC71113 controller based product is connected with 10 LED display unit. Message updated to Controller via RF communication. Each LED unit has capable of 6 messages display over it. 10 LED display unit can configure/control via RF communication protocol. LPC71113 microcontroller has built in feature of CAN interface and SPI interface for message communication.
The LPC1768 Development Board is a full-featured evaluation board based on the NXP processor LPC1768 which runs at up to 12MHz, with 512 Kbytes Flash memories. The LPC1768 Development board provides a wide range of peripherals, includes a CAN interface with RJ45 connector, MMC interface, Ethernet 10/100 interface, Mini USB port, KEY-PAD, User LED , USB host/device port.
In addition, software for the board and example program for each peripheral is readily available. This enables designers to quickly begin NXP code development and test new designs. LPCXpresso Integrated Development Environment (IDE) for code development.
The LPC1788 Development Board is a full-featured evaluation board based on the NXP processor LPC1788 (ARM CORTEX-M3) which runs at up to 12MHz, with 512 Kbytes Flash memories. The board provides a wide range of peripherals, includes a CAN interface with RJ45 connector, MMC interface, Ethernet 10/100 interface, NAND Flash memory, SDRAM memory, Mini USB port, KEY-PAD, User LED , USB host/device port.
In addition, software for the board and example program for each peripheral is readily available. This enables designers to quickly begin NXP code development and test new designs. LPCXpresso Integrated Development Environment (IDE) for code development.
LPC1788 – Development Board
The ATMEGA2560 Development Board is a full-featured evaluation board based on the ATMEL processor ATMEGA2560 which runs at up to 12MHz, with 256 Kbytes Flash memories. The board provides a wide range of peripherals, includes a Serial interface with RS232 connector, MMC interface, KEY-PAD, User LED.
In addition, software for the board and example program for each peripheral is readily available. This enables designers to quickly begin ATMEGA code development and test new designs. AVR Studio Integrated Development Environment (IDE) for code development. The ATMEGA2560 Development Kit contains all of the hardware and software required for evaluating and developing with ATMEG series microcontrollers.
The AT90CAN128 Development Board is a full-featured evaluation board based on the ATMEL processor AT90CAN128 which runs at up to 12MHz, with 128 Kbytes Flash memories. The board provides a wide range of peripherals, includes a CAN interface with RJ45 connector, UART interface, MMC interface, KEY-PAD, User LED.
In addition, software for the board and example program for each peripheral is readily available. This enables designers to quickly begin ATMEL controller code development and test new designs. AVR Studio Integrated Development Environment (IDE) for code development.
The AT90CAN128 Development Kit contains all of the hardware and software required for evaluating and developing with ATMEL CAN microcontrollers.
